Revised: 02/25/2014
Go to Tools>> Merge Setup>> Merge Template
This program is used to setup a letter or form with variables that can pull information from tenant records.
The following information is in this help file:
At the top of the view are functions such as clear and delete. For more information on functions, click here.
Select an existing code to edit a form/letter or enter a unique code for the form/letter you will be designing. The code may be numbers, letters or a combination of both.
Once the code has been entered and saved, it may not be changed. The description and the design of the form may be changed.
Enter a description for the form/letter you will be designing. Users will see and use the description to select a letter or form in Custom Forms and Letters
Select one of the following letter types:
Shared Component - Use this letter type to do parts of letters or forms that will be shared or imported into other forms. For example a letterhead.
Standard Family Letter/Form - Use this options to design general letters or forms.
Standard Member Letter/Form - Opens up the Always Prompt option and adds a Member folder to variables.
Standard Income/Asset Letter/Form - Opens up the always prompt option and adds an Income_Asset folder to variables.
Landlord Letter (Unduplicated) - Letters, forms or envelopes created with this letter type and selected for printing through Batch Letters and Forms, will only print one letter per landlord and not for each tenant listed in the selection grid.
Addresses Only - Only address variables are available to select. When a letter/envelope with this option is selected, an Address Selection browse will appear. Select the name/address combination(s) to print the envelope or letter for.
Income Verification - This letter type is used when the form/letter must interface with income information for verification.
Asset Verification - Use this letter type when the form/letter must interface with asset information for verification.
Deduction Verification - use this letter type when the form/letter will interface with deduction information for verification. The verification folder will be available to select fields.
Full Time Student Verification - Verification Information interfaces with a member's education information for school name and address from Household Composition. The verification folder will be available to select fields.
Disability Verification - Verification information interfaces with a member's Medical Professional information in Household Composition. The verification folder will be available to select fields.
Quick Letter - Use quick letter form to setup letters with a blank body. The body of the letter is created in Quick Letter Design found under the Quick Link menu for Tenants and Applicants.
Letter types may be changed at any time; however; some variables will not work with some letter types and errors will be displayed for the variables that will not work when the letter is opened for editing in the merge template.
Letters with errors will not print from Custom Forms and Letters.
Enter the number of pages for the letter. The number of pages may be changed as needed. Additional pages must also be setup as layers in the Edit Layout (design) area.
Select a Catagory from the drop down menu, if applicable.
Categories can be used to filter letters/forms when associated with a merge template.
Select a category in Custom Forms and Letters program as a filter
New Categories can be added by users in Global Table Maintenance which is available in some modules such as Waiting List
Enter a Type of LETTERS (press F9, if not found continue and save it as a new type)
Enter a Description if LETTERS is entered for the first time
In the grid enter a Code and Description (the description is what you will see to select in the Category drop down
When this option is checked for a letter or form. Information will be added to the list of tenant tasksapplicant tasks for a tenant after the letter or form has been printed for the tenant.
Select a Tracking Code, if applicable, for the letter or form.
When a form or letter is printed for an applicant or tenant that has been tied to a tracking code, a tracking item will be entered in the grid, on the Tracking tab, to record that it has been printed.
Enter a checkmark in the Auto Attach on Printing box to have the letter attached to the Tenant Master>>Attachment Tab for the tenant it is printed for.
When this option is checked the letter or form will always preview even when the print button is used. The letter/form may be printed from within the preview. This is helpful if the form or letter contains form control boxes to allow for user input before a letter is printed.
When this option is checked for an Income Verification form or letter, a prompt will be displayed allowing users to select the member to print the template for.
When this option is checked for an Asset Verification form or letter, a prompt will be displayed allowing users to select the member to print the template for.
When this option is checked for an Deduction Verification form or letter, a prompt will be displayed allowing users to select the member to print the template for.
This check box option is only available for the following Letter Types:
Standard Member Letter/Form
Standard Income/Asset Letter/Form
When checked a selection box will be shown to allow the appropriate member or income/asset information to be selected for printing.
This area may be left blank, or you may select a tenant whose applicable tenant information will be merged into Edit Layout, Preview Sample or Print Sample in the Merge Template.
Click on this button to activate the Edit Layout area where a form/letter can be edited or designed.
Click this button to preview a selected letter or form. Do not click this button when going into Edit Layout.

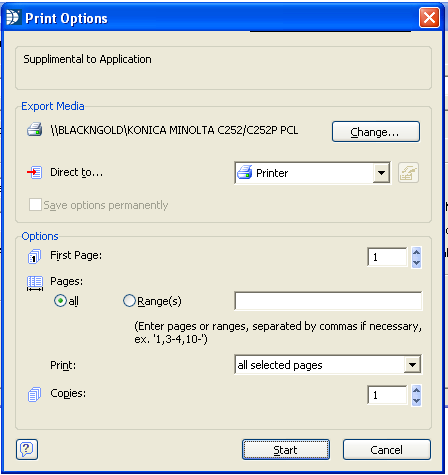

Click this button to print a selected letter/form. Brings up a Print Options box.
Users may enter up to 12 special questions to be used in the letter. When a special question is entered in Question 1 through 12 a variable merge field will be created. The new variable merge field for the special question will be in the Special Question Folder under Variables and may be inserted in the letter or form.
When the letter is previewed or printed users will see a panel where they may enter the answer(s) to the special question(s) which will be merged into the letter or form wherever the special merge field was inserted into the letter/form.

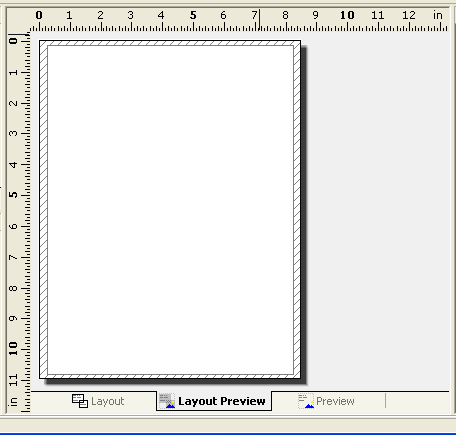

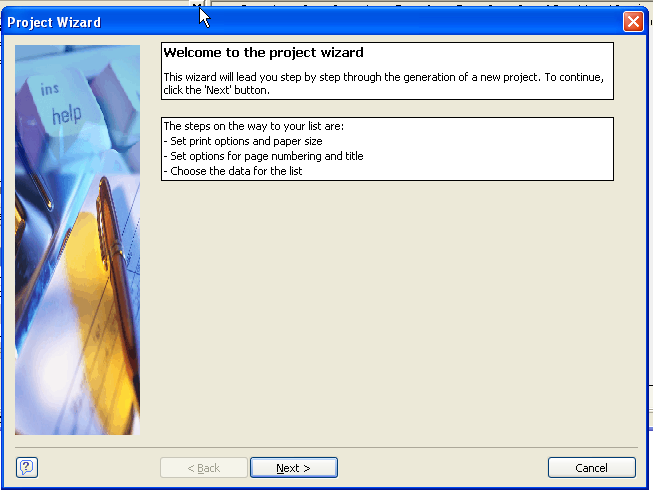

The following view will be the first thing that appears when opening a new form/letter template after pressing "Design". The project wizard may be cancelled which will take them to Edit Layout. For an existing form or letter the design button will take users directly to Edit Layout.

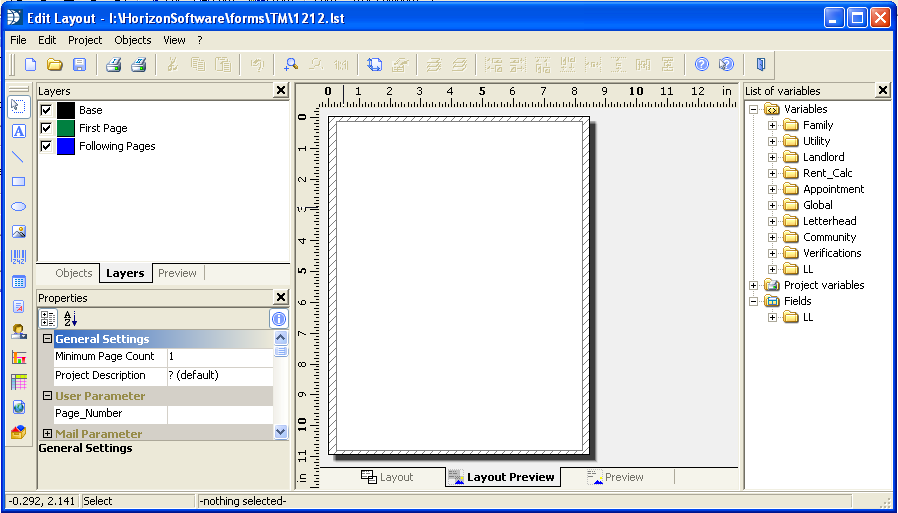

This is the view where letters/forms are created.
This is where you will design your letter/form. There are three ways to view your form (tabs at the bottom of page). Layout; Layout Preview and Preview. You may design the form in any of the three views.
Use the control icons along the far left side of the edit layout or use the menus at the top of the page to insert text and objects onto the form/letter. The controls are explained below in the order the icons are displayed.
Variables shown on the far right may be dragged and dropped onto the page or you may use a text field to insert variables.
Caution: If you drag a variable directly onto/into a text portion of a letter or form, it will wipe out all of the text. Undo does not fix this. If you have been saving frequently you may close out of the form without saving changes. You will loose any unsaved information, but all saved text will still be available.
The following "control" information does not include every tool available, but only those most commonly used in letters or forms.
This is the select tool. It may be activated from the control panel on the left side of the edit layout, or you may use the keystrokes Ctrl S; or you may activate it from the menu under Objects; Select; Selection Mode. This is the default "mode" for the cursor when Edit Layout is opened.
For example: Click on the Select tool and drag it across the page to select one item or a group of objects on the page. After the object or objects have been selected you may move them as a group to another location (drag n drop).
Use the text button to insert text or variables into the form/letter. From the menu under Objects; Insert; Text, or use the keystrokes Ctrl T.
If text should be formatted in sections (words or phrases) then the formatted text icon should be used. Text can be formatted in the text box, but only for an entire line.
For example: Click on the text option and drag the cursor on the page to insert a text box. Double click on the box to open it as shown below.
Double click on the dotted line on the left to open it further. (--- ) on left side of view
When you return to the above view you can add a second line of data into the text box by clicking the next line (---) to open the Edit Text box for a second, third, fourth or etc line of data.

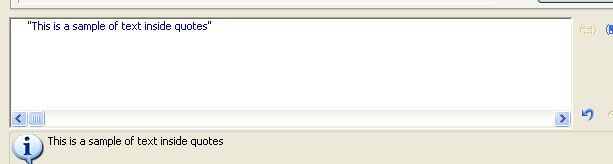

Text must be entered into the bottom panel. Text must begin and end with " (quotes) or there will be an error message. The text will be shown in blue.
Text example:
After entering your information, click OK at the bottom of the view to return to Paragraph Properties. Another line of text may be entered in the same manner on the next line

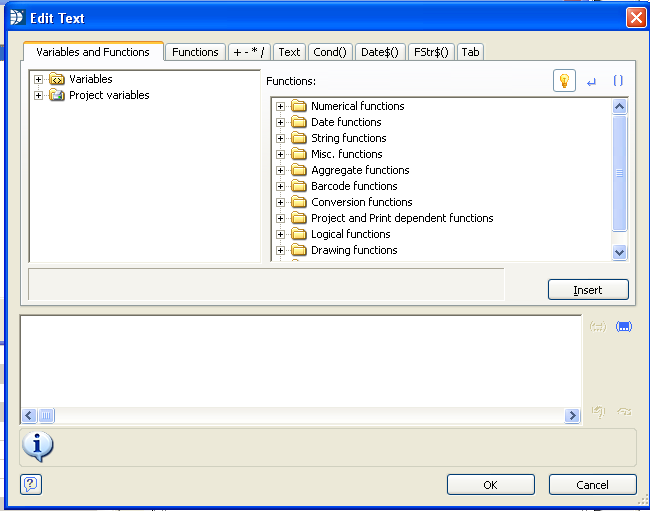

Enter a Variable into Text (some of the information here applies to Formatted Text as well)
Open a variable folder. Variables may be selected from the top window (double click on one) to insert them into the bottom panel. Variables do not need the " quotes around the text. The " " may be used to insert a space between linked variables (2 variables selected on the same line). Variables may be placed one after another with a + between them.
Note: Variables may be placed onto a form without opening the text field, by dragging and dropping them. Caution: Do not drop a variable into a text field as it will wipe out any text already entered.
For example:
In the above sample the first line of the unit's address is linked with the +. The " " puts a space between the two lines of address and the following + finishes the link. If a space was not needed between the two address lines, you could link with just one +.
Other Formula Options
Insert Current Date - go to Date$ tab and double click on a date line in a style that you want. The code will show in the window and the date will be shown directly under the window. The date inserted will be the current date.
Add days to Current Date - follow the add a date instructions but do not click ok yet. Add a + with the number of days to add after Now() and before the comma. For example: Date$(Now()+20,"%m/%d/%y") this will return a date 20 days in the future.
Change how the variable "Letter Date" looks - Follow Insert Current Date instructions but open Variables and Functions tab after you select a date format. Highlight Now() and double click the letter date variable found under the Global folder. This will insert the letter date option into the current date formula. Example: Date$(date(Global.Letter_Date),"%M %d, %y") The date will not show under the window in this option in the style of date that was selected.
After entering your information, click OK at the bottom of the view. You will be back at the Paragraph properties view.

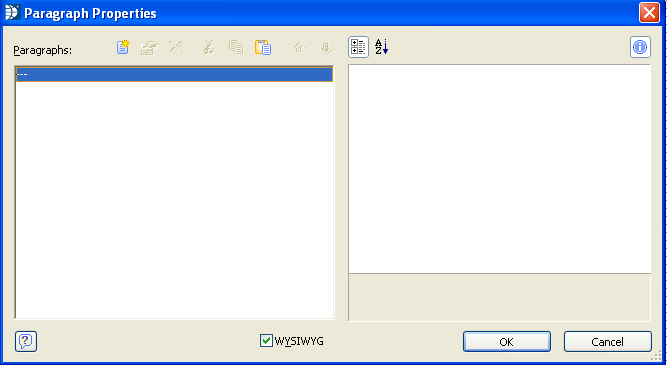

After the Paragraph Properties view is closed a formatting box will be displayed above the box as shown below:
Highlight a line and select a formatting option
To format from within the Paragraph Properties box:
Highlight the line of text and format it if you desire (font, size, bold or underline). Each line may be formatted the same or they may each be different. Formatting is done for the entire line.
Format the line of text or information with the properties on the right side of the Paragraph Properties view.
Click on the + beside font to open it ...click the font selections. When open you will see:
Click the

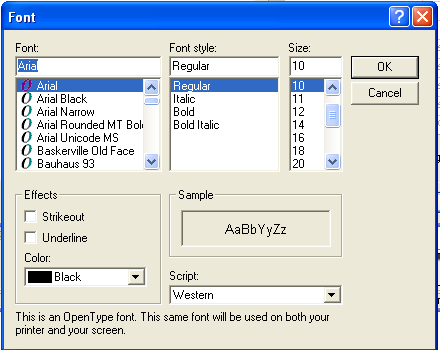

button to open up the font selection box:
You can select the font, style, size and color. Click Ok when done.
Under Layout you can:
Align the text in the box (click left and change to right or centered)
Set spacing between additional lines within the text box by entering a number (12 or 15 gives the appearance of double spacing for Paragraph Spacing. This only works with lines in the same text box.
Remember to click ok to close the text box or your information will not be saved.
Use the line button to draw lines on the page. Tables are manually drawn in with lines. From the menu go to Objects, insert line. Or use Ctrl + L.
Drag the + across the page to "draw" the line.
You can change the properties of the line by clicking on the line and opening the desired option under properties.
Click Width
Click the
to open the Edit Width box or just change the number to a higher number .001 changed to .005 (with a width of .005 the line will be darker and not light gray)
Change the number to 0.005 or a higher number to achieve the look you desire. Click Ok to accept your change or cancel to close the box without the change.
A number higher than .005 will begin to make the line look bolded or thicker.
TIP: With one line formatted the way I want it to look, I copy and paste to get other lines I need. Ctrl+C to copy and Ctrl+V to paste and then drag the copy into position.

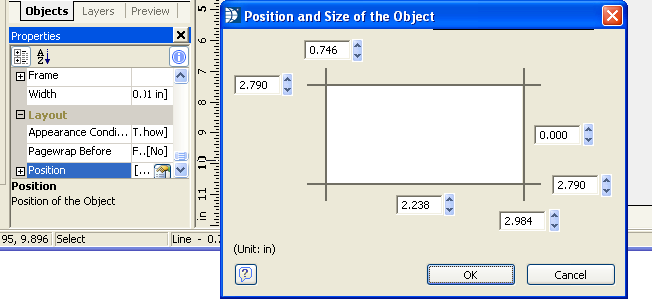

To tweak the line position - how straight it is etc. I use Position under Properties:
When the 2.790 (or whatever numbers your view shows) numbers match the line will be straight. (The numbers will be different depending where the line is on the page)
Use the position and size information in making a table.
Use the position numbers to space lines evenly apart. Add .25 to the 2.790 (or the next number..remember there are two one on the right and one on the left) or a number of you choosing to space the lines.
Note: If you make a letter in word with a table (or just the table) you can sometimes use ctrl C (copy) and ctrl v (paste) to copy the entire letter into a formatted text field.
Click the rectangle icon or use Options>>Insert>>Rectangle or Ctrl + R.
Go to the page and drag the rectangle onto the page.
The width option is found under border. Use the Width option to make the line show up (.001 is light grey) This works the same as the width option for line.
Use the Filled option to make the rectangle transparent or filled with a color.
Click the ellipse icon or use Options>>Insert>>Ellipse or use Ctrl + I.
Use the ellipse in the same way as the rectangle to insert
Use the picture icon, Ctrl + P or go to Options>>Insert>>Picture.
Drag the picture field onto the page.
Double click the picture field you created on the page. This will open a browse box where you can find a picture or logo to insert into the picture field.
Check the Embed in Project option. This way if the picture is moved or deleted, it will not affect the letter or form until it is manually changed.
You can reshape, reposition or resize the picture field after the logo/.jpg is inserted.
The table is used with the variables listed under fields and does not create a static or stationary table like word. The table cells are only created for the data that is to be merged so gaps in a table may occur if the information that should have gone into a cell is blank (no cell is created in the table).
Drag the table onto the page.
Open Layout option (click layout tab at the bottom of the page...this seems to work best when inserting merge info)
Drag a variable into the table
Only the variables at the bottom of the variable list under Fields can be inserted into a table
When the variable is dragged into the table it creates two lines If both lines are not there, drag the variable a second time to get two lines.
The top line is the column header
The bottom line is the variable data field.

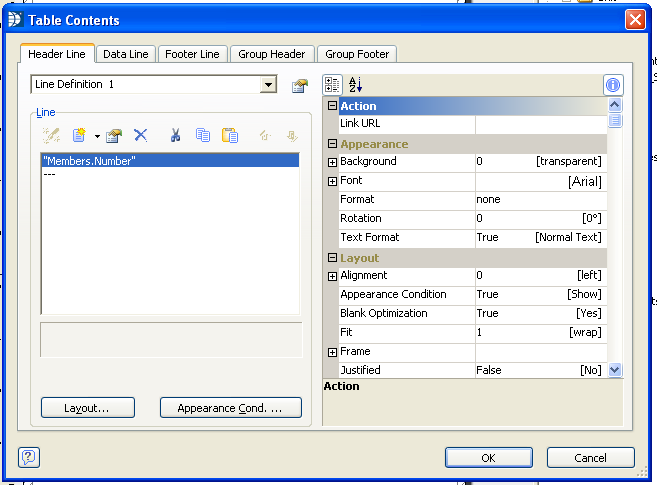

After all the variables are dragged into the table double click the table to open up the Table Contents edit area shown in the next picture.
The length of each variable field may be changed using the mouse to drag them smaller or wider.
Header Line information may be changed to a more appropriate Table header.
For example:
Members.Number can be changed to "Member No", "Member #" or "Member Number" (text must be in quotes)
Data Line coding/information should not be changed or the information will not be pulled.
Font and alignment information may be changed for both the header and the data lines.
Note:
Table information does not display correctly in the Merge Template preview. The letter/form must be viewed from Tenant or Application Custom Forms and Letters program.
Click the button to drag and drop a formatted text field onto the page.
Double click the formatted text field to open it and begin typing
Text in a formatted text field does not need to be enclosed in quotes (").
The text can be formatted - underlined, made bold, indented, etc.
All formatted text fields must have their Page Break set to False in Properties. If the page break is set to true the form or letter may stop printing after the formatted text field.
Text can be copied (Ctrl+C)and pasted (Ctrl+V) from a Word document into an opened Formatted Text field.

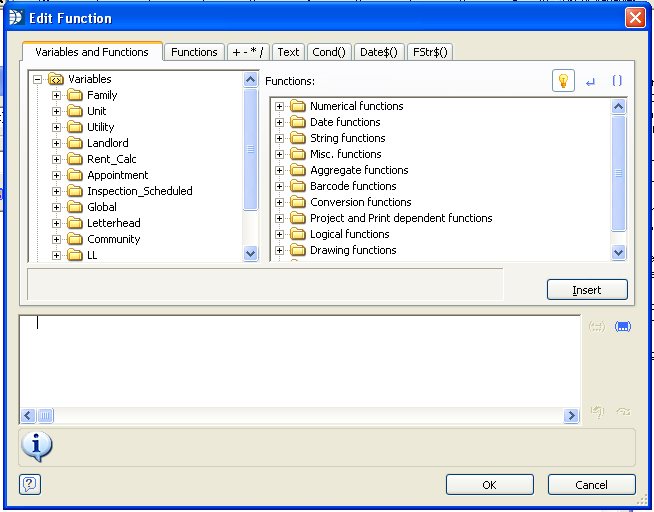

Variables can be inserted into a formatted text document using the
button. This button opens an Edit Function box.
Open a variable folder and double click a Text (
) variable to insert it into the bottom window. Click OK. You will be back in the formatted text view where you will see the formula inclosed in << >>. The information for the formula may not show until you print or preview the form for a tenant.
A number (
) variable will not work properly in a formatted text box unless it is inserted into a formula. For example - click the FSTR$ tab and double click the first formula as shown below
This will enter the formula into the bottom window and Number will be highlighted
Click the Variables and Functions tab and double click the number variable which will replace the word Number in the formula with the variable.
Click OK to close the Edit window. You will be back in the Formatted Text window where you can continue to enter text.
When you are done entering text click the Apply button and then the OK button to close the formatted text window.
Click the button and drag the form control field onto the page. If this form is used in a letter or form Preview Only under Special Options should be checked.
A form control field allows the user to type in information or check mark a box when the form is previewed.
Some suggested property changes:
Force Input - if left to true the user must type or checkmark it. An error will occur if the field is skipped. Change to false if the field may be left blank or unchecked.
Type - (under Action) can be changed to Checkbox. A checkmark would be placed in the form when it is clicked during the preview process.
Multiline - Can be changed from a single line to Multiline to allow for multiple lines of type to be entered.

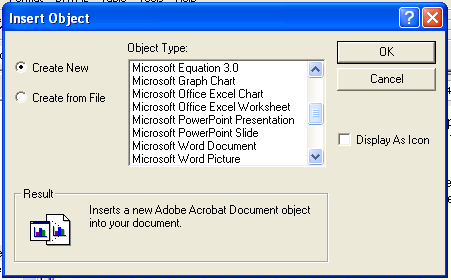

The OLE container allows the user to select a type for the object. For example: The type selected could be a Word document. This will open Microsoft Word and allow a form or letter to be created in it and inserted into the document. Word or Corel must be installed on the computer the document is being created or edited on. Users who do not have Word or Corel will not be able to edit the document.
This graphic shows part of the list that is available for selecting.
You can use tables in the word documents, sometimes the information looks out of proportion in the document, but may print out ok. Sometimes it does not print out the same for everyone.
You cannot add merge fields in the OLE container documents and inserting them in text fields on top of the text document does not always work well because printer selection can affect text spacing when the document is printed.

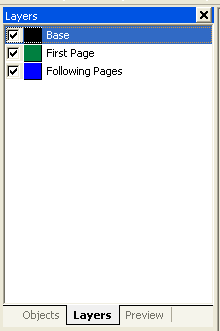

Usually at the top left of the edit layout are three viewing options. Layers is one of the options.
If Layers is missing you can go to View>>Windows and check Layers to get it back.
If you are going to be adding pages - remove the checkmark from Base and Following Pages. If Base is left checked everything put on a page will end up on the base page and will print on every page thereafter.
To Add A Page:

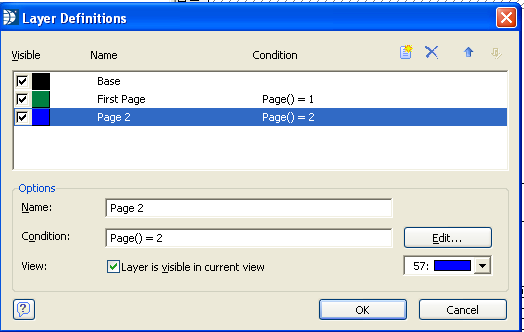

Right click on one of the pages and select Layer Definitions from the drop down menu or go to Project>>Layer Definitions.
Change the name of following pages to Page 2 and change the Condition to Page() = 2 as shown below. Click OK to accept the changes and close the box or add another page
Add a 3rd page by clicking the insert button
use the arrows by the insert button to move the page into the proper order. Name the page and put in the condition in the same format as page 2 just change the 2 to a 3. Continue to add pages as needed and then click OK. Remember to change the Page amount on the Merge template to the correct number of pages.
To Work on a Page
In Layers, remove all the checkmarks from the pages except for the one you will be working on.

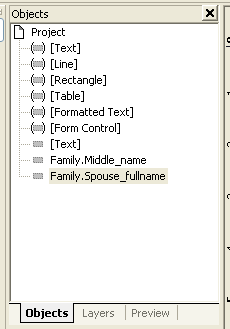

The object list displays all the objects you have in the project. Objects that are on pages that are not checked or active are shown in parenthesis.
If the object list is not shown go to View>>Windows and select Object List to make it active again.
You can open an object on an active page by double clicking it when highlighted. This is useful when it is hard to click on an object on a page.
Preview shows a small preview of an active page.
If missing go to View>>Windows and check Preview.

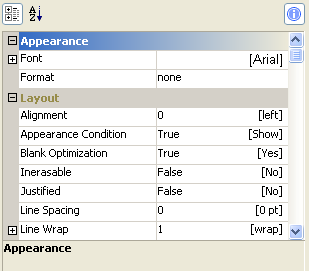

Displays and allows editing of properties for an object. Editing of properties has been discussed for objects.
If missing go to View>>Windows and click Property Window
Some properties that can be changed for some objects:
Page Break - should be False for Formatted Text
Width - can be changed to make lines darker
Multiline - can allow a single line of type or multiple lines
Font - can change the font in some objects
Type - For form control can be changed to a checkbox if needed

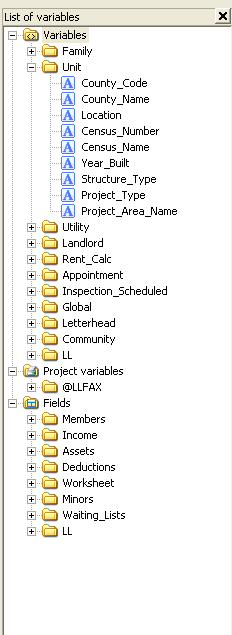

The list of variables that may be placed on a form or letter are shown on the right side of the Edit View. The variables that are available change depending on the letter type selected or the module merge is accessed from.
If the list is not shown go to View>>Windows and click Variables
Open the folders to see the variables underneath.
Variables may be dragged onto a page or may be inserted using Text or Formatted Text (do not drag and drop a variable onto a text field as it will erase the text)
A variable may be dragged onto an open area of the form/letter and them moved overtop a formatted text field. This will not erase the text. It is only on the initial drag n drop that text is erased.
Displays the selected printer. Click "Change" button to select a different printer.
Defaults to "Printer". Leave at this option to print to the selected printer or click the arrow button and select preview to view the letter or form on screen.
Click the start button to print or preview.
